Image Quality Tuning

For the past 20+ years MM Solutions EAD has built its vast expertise in Image Quality field and has proven its
knowledge with wide range of ISP platforms, as well as algorithms (AWB, AEC, AF, etc) and post ISP algorithms. Clients trust MM Solutions in understanding their needs, to meet their criteria and requirements to find the best solution. We provide fully equipped imaging labs including all the tools needed for excellent camera fine tuning, precise calibration and detailed verification and analysis of the achieved results.

Nowadays, the IQ tuning team is the fastest growing team in the company. Our professional engineers have the possibility to learn and adapt to the newest world technology and work in competitive and constantly developing industry.

Icon IQ

ISPS EXPERIENCE

More than 20 years experience in tuning of different ISPs vendors for various applications.

VENDORS

Rectangle 1617

Qualcomm: MSMxxxx (MSM8998, MSM8996, MSM9853 and etc);
Spectra2xx (Spectra255, Spectra280 and etc), Spectra3xx (Spectra355, Spectra380, Spectra390 and etc); Spectra4xx, Spectra5xx

Rectangle 1617

Intel: Myriad2, MyriadX

Rectangle 1617

TI: TDA4, TDA3, TDA2+

Rectangle 1617

Renesas: R-car V3m, R_car V3H

Rectangle 1617

Renesas: R-car V3m, R_car V3H

Applications

Mobiles

Automotive

Surveillance

Action
Cameras

Glasses

Drones

Conference Devices

360 Back to Back Camera

ALGORITHMS

Tuning and evaluation of various algorithms developed by MMS, Qualcomm, TI or 3rd parties.

Rectangle

AF, AWB, AE, LSC solution for 360deg Camera

Rectangle

Video / Still HDR, GLBCE

Rectangle

EIS, MFNF, Bokeh, Smart Zoom

USER MODES

Specific tuning for different user scenarios:

Rectangle

Still image (ZSL, nonZSL, Burst, HRD)

Rectangle

Flash: Pulse, Torch, Dual LED

Rectangle

Video, High Frame Rate, Slow Motion

Rectangle

VIDEO HDR: Multi frame, Split Pixel, ZZ DHR, Staggered(DOL), Quad

Rectangle

Multi camera: 3D, Wide Angle, Tele, Fish Eye, Surround View, Camera Mirror System

Rectangle

Night Mode, Action, Landscape, Portrait, etc.

Rectangle

Bokeh

If you are considering introducing our technology or products, or if you are interested in co-creation with us, please feel free to contact us from here.

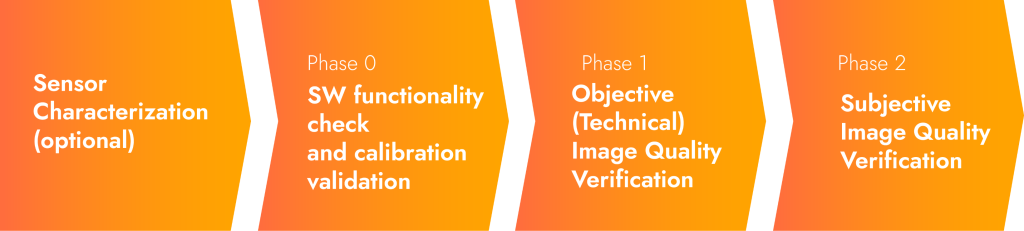

IMAGE QUALITY TUNING PROCESS OVERVIEW

IQ process csheme@2x
IQ process csheme 1
IQ process csheme 2
IQ process csheme 3
IQ process csheme 4

IMAGE QUALITY VERIFICATION

Rectangle 1617

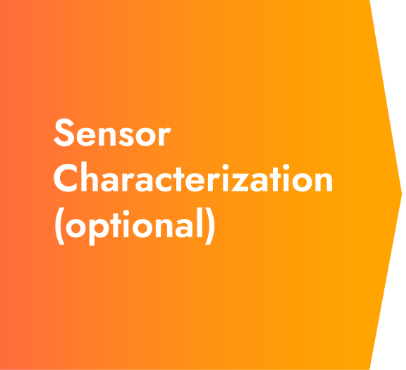

Sensor Characterization (optional)

Image sensor characterization helps to detect camera module defects in early stage. Such
problem could originate from few easily testable factors such as IR cutoff filter not fulfilling
it’s purpose, RGB non-linearity, blemish due to dust trapped in the lens stack, VCM
ringing etc. All such problems would limit sensor module performance and thus affect
final product Image Quality.

Rectangle 1617

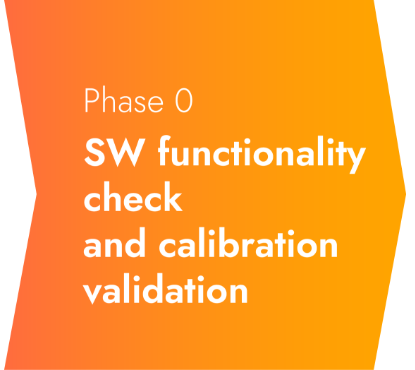

Basic tuning and functionality check

During this phase system functionality verification is performed. Functionality test include RAW
capture capability, Tuning parameters are applied correct inside system, verification of sensor
module drivers and 3A statistics. Also, system vs PC simulator testing is performed to evaluate if
any difference limits system tuning with simulator.

Rectangle 1617

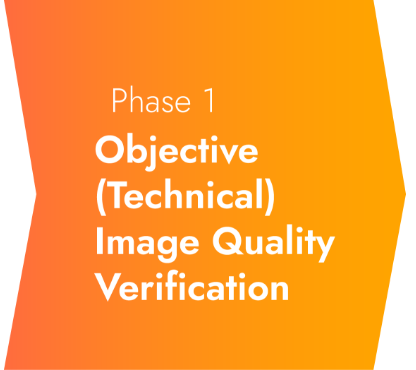

Objective (Technical) Image Quality Verification:

Objective (Basic) tuning is done at fully equipped Lab in order to meet client’s criteria or
to pass specific certifications (Teams, Skype, Zoom and etc.) and to find the best fitting
solutions.

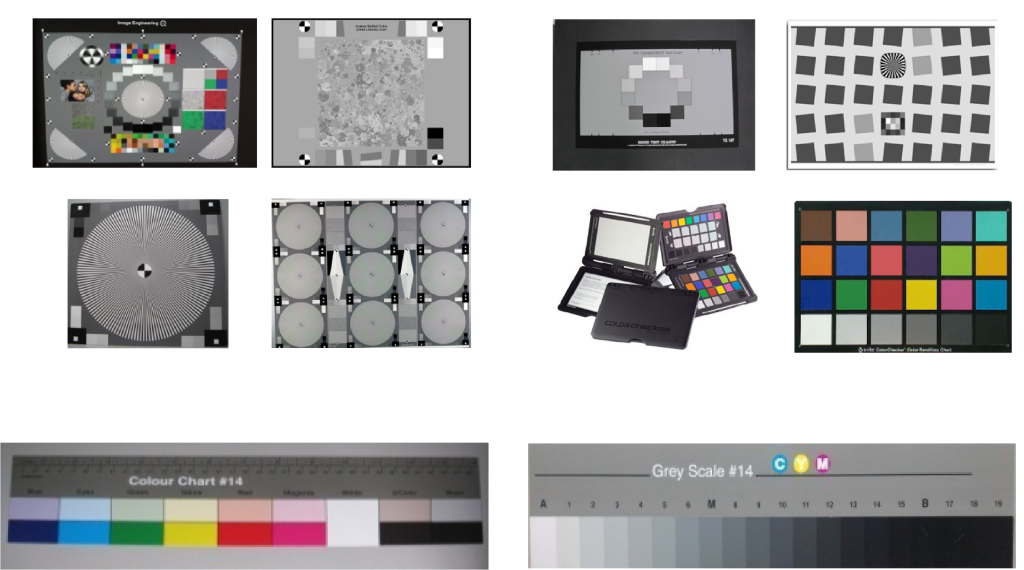

Perform all standard technical measurements supported by Imates, IE IQ Analyzer or customer software.

IQ verifications@2x
iq sw@2x
Rectangle 1617

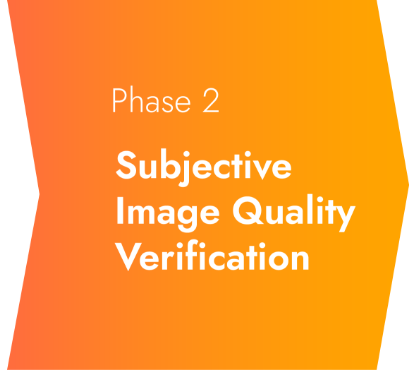

Subjective Image Quality Verification:

Comprehensive real-life testing covering a thorough variation of use cases and light conditions.
Tests are performed side by side with reference cameras and evaluated by our image quality
experts.
Our verification, comments and conclusions are presented in detailed reports at the end of each
phase.

subjective iq veriification@2x

If you are considering introducing our technology or products, or if you are interested in co-creation with us, please feel free to contact us from here.
